The Super centrifuge is a vertical high speed tubular bowl centrifuge, generating centrifugal force up to 20000 times the force of gravity. It is used either for continuous separation of two immiscible liquids having different specific gravities or for batch-wise clarification / polishing of liquids containing fine insoluble solids.

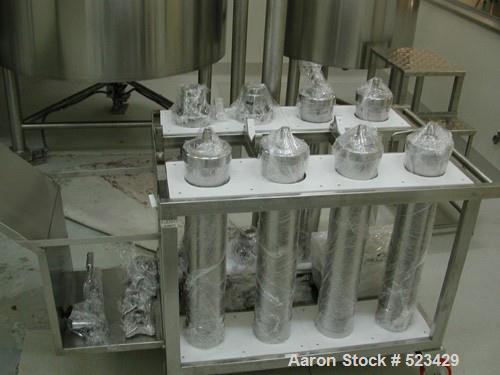

Alfa Laval - Sharples Tubular Centrifuges. Manufacturer: Alfa Laval - Sharples. Description: Tubular Centrifuges. Send us an inquiry for this machine! Machine inquiry +49(0)2236-393530 info@centrimax.com. Set a back-in-stock notification. Mandatory field Company. Used AS26SP Sharples Super centrifuge, 316 stainless steel construction, 17000 RPM bowl speed, heating/cooling coils, triple mechanical seal for sterilizatoin to 255 degrees F @ 22 PSI, 1.1 specific gravity rating, 8.6 liter bowl capacity, 6.5 liter solids holding capacity, centripetal pump liquid discharge, with 5 HP 230/460 volt XP motor, 3545 RPM motor, serial# 89-AS26SP-123. Sharples/Alfa Laval manufacture hi-speed vertical tubular bowl centrifuge units that spin at 15000 RPM. For batch type process, this centrifuge was designed for clarifier, 2 phase liquid/liquid, liquid/solids having very low solids content, or separator, 3 phase liquid/liquid/solids again having very low solids. Sharples AS26 (Clarifier) - Centrifuge Chicago Corporation Sharples As26 Manual Used SHARPLES AS26-2P 17000 RPM 5 HP, Used Separators and used sharples model as26-sp centrifuge. Rated 14.7 psig @ 204 f. 5 hp, 230/460 Sharples 14' Dia Basket Centrifuges. Sharples As26 Manual - ultimatesecuritycourse.com. Centrifuge Chicago Corporation carries many different types of centrifuge parts, but because of the different configurations among the different types of centrifuges, we ask that you please call us on our toll free number ( 866-346-6800) to discuss the parts for your particular centrifuges.
Pennwalt Ltd. are manufacturers of high-G Tubular bowl Centrifuges model AS12, AS16 and AS26 based on the technology acquired from Sharples Stokes Division Pennwalt Corporation-USA.
Pennwalt also supply spare parts manufactured to international standards that are interchangeable on each of the above models of the high-G Tubular Bowl Super Centrifuge
This sectional view of a Super-Centrifuge shows the application of centrifugal force to a mixture of two immiscible liquids containing some suspended solids.
The mixture continuously enters the Super-Centrifuge through an inlet feed nozzle at the base of the machine, into the hollow cylindrical rotor. Rotors have been designed and engineered to rotate at 17000 r.p.m. and generate centrifugal force of upto 20000 times the force of gravity.
This force separates the two liquids according to their specific gravities into concentric cylindrical layers, and the solids are deposited inside the rotating bowl against the rotor wall.
The separated liquids are continuously displaced upwards by the incoming mixture and continuously discharged through their respective outlet ports at the top of the rotor. The layer of accumulated solids that builds up on the inner diameter of the rotor wall is cleaned out batch-wise for which the super-centrifuge is shut down when it is filled up to the rotating bowl’s limiting solids holding capacity and the rotating bowl is removed for cleaning.
There are, however, many applications where only the removal of suspended solids from a single liquid is required. Super centrifuges for such applications are called Clarifiers and are often provided with only one set of discharge ports. Mylar Liners are optionally supplied and can be placed on the inner diameter of the bowl for ease of removal of insoluble solids deposited on the inner diameter of the bowl
